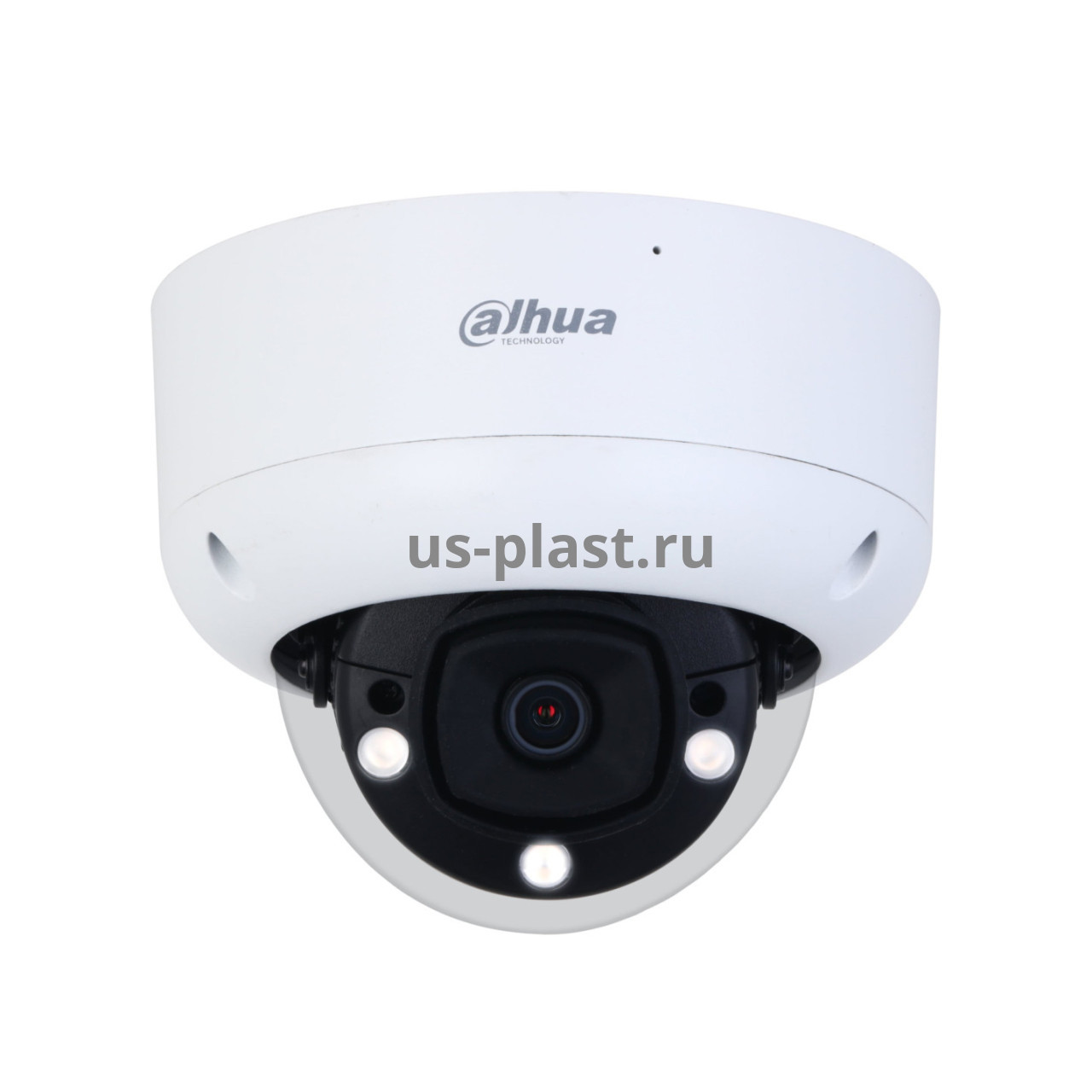

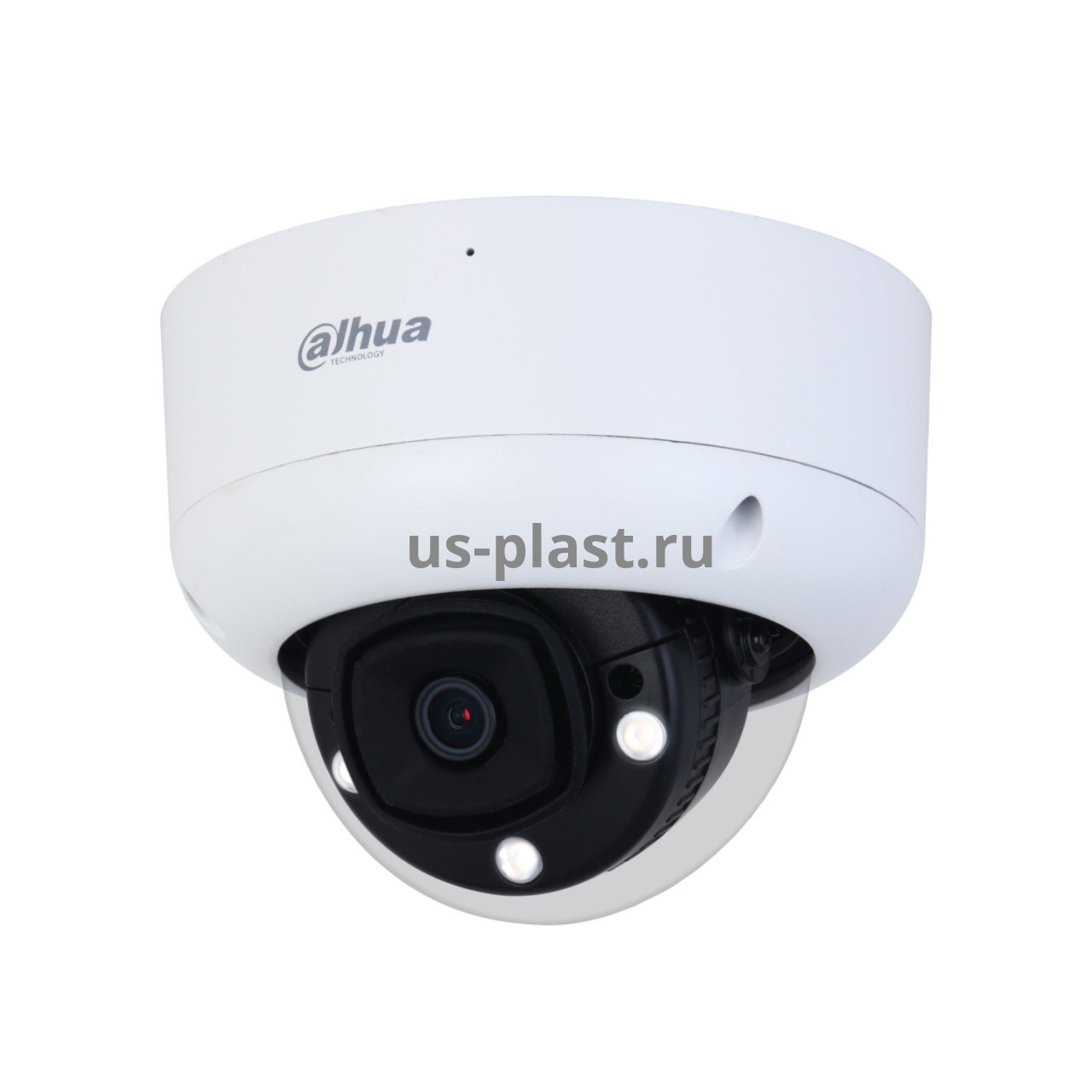

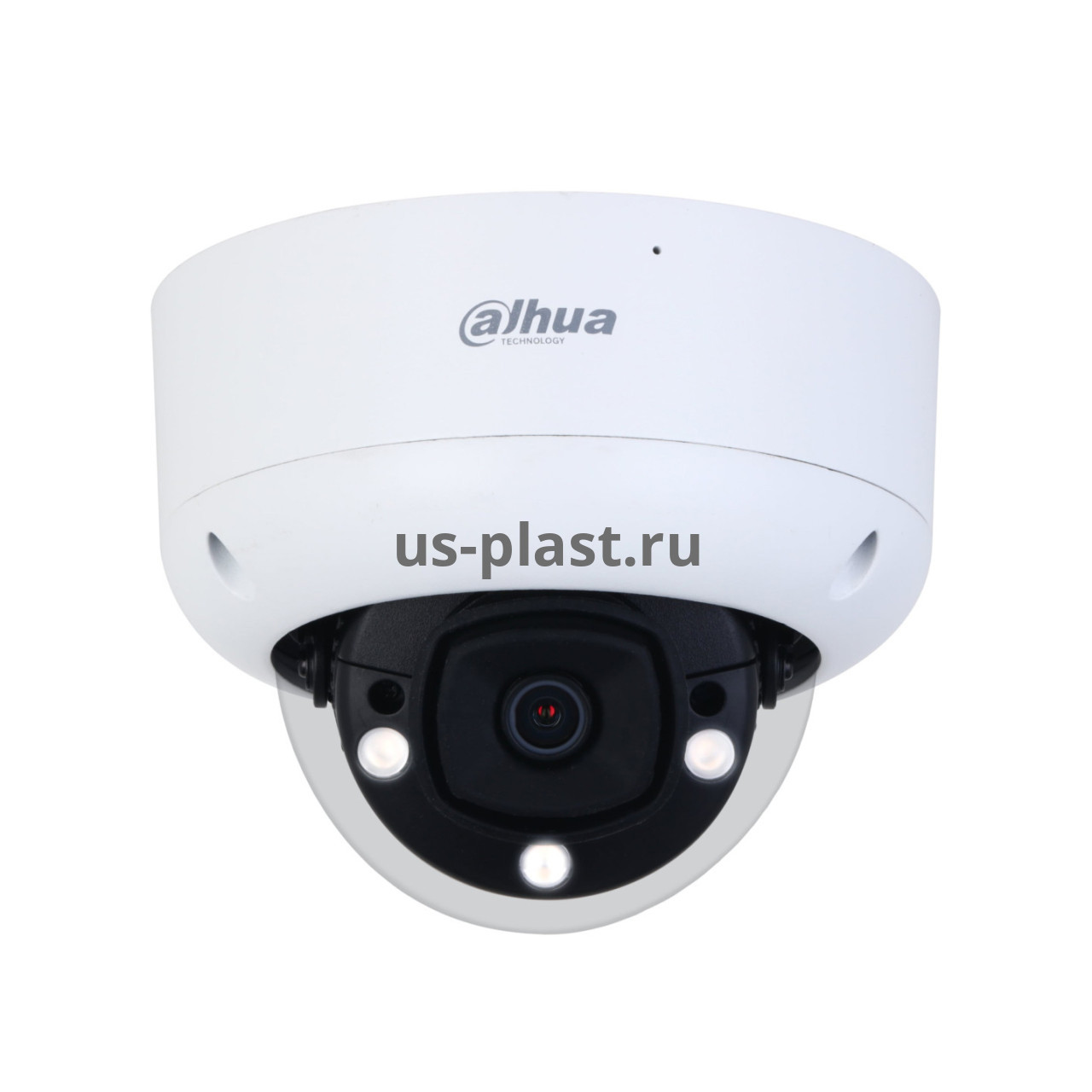

Dahua DH-HAC-HDBW1509RAP-IL-A-0280B-S2, аналоговая купольная HDCVI-камера

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s;
NTSC: 1/4 s–1/100,000 s

Min. Illumination

0.001 lux@F1.0 (Color, 30 IRE)
0.0001 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65dB

Illumination Distance

IR: 40 m (131.23 ft);
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto

Illuminator Number

3 (Warm light);3 (IR light)

Angle Adjustment

Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F1.2

Field of View

2.8 mm: H: 112°; V: 58°; D: 136°
3.6 mm: H: 92°; V: 48°; D: 108°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.4 m (4.59 ft)
3.6 mm: 2 m (6.56 ft)

DORI distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.8 m

(209.32 ft)

25.5 m

(83.66 ft)

12.8 m

(41.99 ft)

6.4 m

(21.00 ft)

3.6 mm

77.8 m

(255.25 ft)

31.1 m

(102.03 ft)

15.6 m

(51.18 ft)

7.8 m

(25.59 ft)

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@30 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto;Area white balance

Gain Control

Auto;Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Defog

Electronic defog

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 6.4 W (12 VDC, WLED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IK10;IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal

Product Dimensions

Φ126.0 mm × 100 mm (Φ4.96" × 3.94")

Net Weight

0.59 kg (1.30 lb)

Gross Weight

0.75 kg (1.65 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
